Customize Clean Room Hepa Filter Box Unit Stainless Steel For Clean Room Ceiling

Brand Name : YN
Model Number : YN-HU-610
Certification : CE/ISO
Place of Origin : China
MOQ : 1PCS
Price : reconsideration
Payment Terms : L/C, D/A, T/T, Western Union
Supply Ability : 10000PCS/month
Delivery Time : 7-15 work days
Packaging Details : First in carton,then made wooden tray
Product name : Stainless steel hepa filter unit
Hepa filter : Mini pleat hepa filter
Efficiency : H13/H14
Out dimension : 660*660*400mm
Filter size : 610*610*90mm
Flange size : 320*200mm
Air volume : 1500m³/h
Material : 304 stainless steel
Contact Now

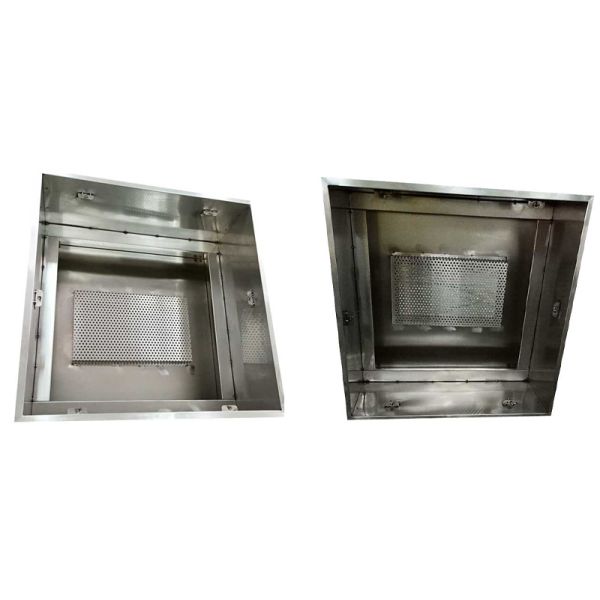

Stainless steel hepa box customize hepa filter unit for clean room ceiling

1. Hepa box description

What is efficient outlet?
Efficient delivery outlet shell is made of high quality cold-rolled steel production, surface electrostatic spray, including static pressure tank, high efficiency filter, scattered flow plate, in the reconstruction of the new levels of clean room, as terminal HEPA filter in clean the ceiling, with the advantages of less investment, simple construction.

Characteristic:
Compact structure
Reliable performance
Strong ventilation performance
Convenient installation
Easy maintenance

What is DOP liquid tank type efficient delivery outlet ?
DOP liquid tank type efficient delivery outlet is efficient filter is applied to sending wind system in the middle of the device, the purpose is to air until after the highly effective filter obtained ideal static pressure, the high efficiency filter obtain the reasonable use. The structure is characterized by compact structure, reliable performance, strong ventilation performance, convenient installation and easy maintenance. DOP, differential pressure detection, liquid, cut type air valve, flow, and other types of powder swirl diffusion panel. Goods are available in all varieties.


2.Hepa box Feature

Efficient air outlets are available in I and II series. Series I is in the form of replaceable filters, and Series II is in the form of disposable air outlets, all under the air supply.


High-efficiency air outlet Series I: The air outlet consists of a high-efficiency filter, a high-quality thin steel plate, and an aluminum alloy diffuser orifice plate. It is easy to install, reliable in sealing, and can easily replace the filter. Take over the way can be connected or flanking.


High-efficiency air outlet series II: ultra-thin and thin type. All are primary air outlets, which are easy to replace (only need to remove the clamps of the soft joints between the air supply duct and the air outlet). This series is particularly suitable for the purification of air conditioning systems with limited ceiling space. The main advantages: simple and reliable box structure, strong ventilation, uniform air supply, easy installation and easy maintenance.


3. Standard Model Technology Parameter

Mini-Pleated

HEPA filter

Model

Cabinet Size

Filter SizeFlange Size

(m3/h)

Rated Air flow

Tube on topTube on side
YN-HU-484-T1YN-HU-484-S1534×534×380484×484×96320*2001000
YN-HU-610-T1YN-HU-610-S1660×660×380610×610×96400*2001500
YN-HU-915-T1YN-HU-915-S1915×610×380915×610×96500*2002000
YN-HU-1220-T1YN-HU-1220-S11220×610×3801220×610×96500*3003000

HEPA filter

with Clapboard

Model Cabinet SizeFilter SizeFlange Size

(m3/h)

Rated Air flow

Tube on topTube on side
YN-HU-484-T2YN-HU-484-S2534×534×380484×484×220320*2001000
YN-HU-610-T2YN-HU-610-S2660×660×380610×610×220400*2001500
YN-HU-915-T2YN-HU-915-S2915×610×500915×610×220500*2002000
YN-HU-1220-T2YN-HU-1220-S21220×610×5001220×610×220500*3003000
Customized design is welcome.

4.Packaging and shipping

1. Packaging Details: wooden package or as customers'requirment
2. Delivery Details: 7-15 workdays
3. Means of Transportation: International express / air / sea
4. Loading Port: Shenzhen or Guangzhou
